BBraun/Sartorius Fermenters pilot plant for Sale

Zu verkaufen BBraun/Sartorius Fermenter versuchsanlage

Consisting of :

2 Biostat C controllers with both with 5 Liter In-situ sterilizable Stirrer vessels

Incl. licence and software for network for 4 units MFCS-Win Control software.

Price indication for set of 2 is EUR 14.480,--  Click for details

1 Sarto-Flow Alpha. with 2 Liter Jacketvessel and plenty of spareparts and tubing. EUR 5.150,--  Click for details

1 Kendro/Hereaus Contifuge Stratos, Continuous Flow Centrifuge. EUR 4.350,--  Click for details

Contact: fermenter@nsm.nl

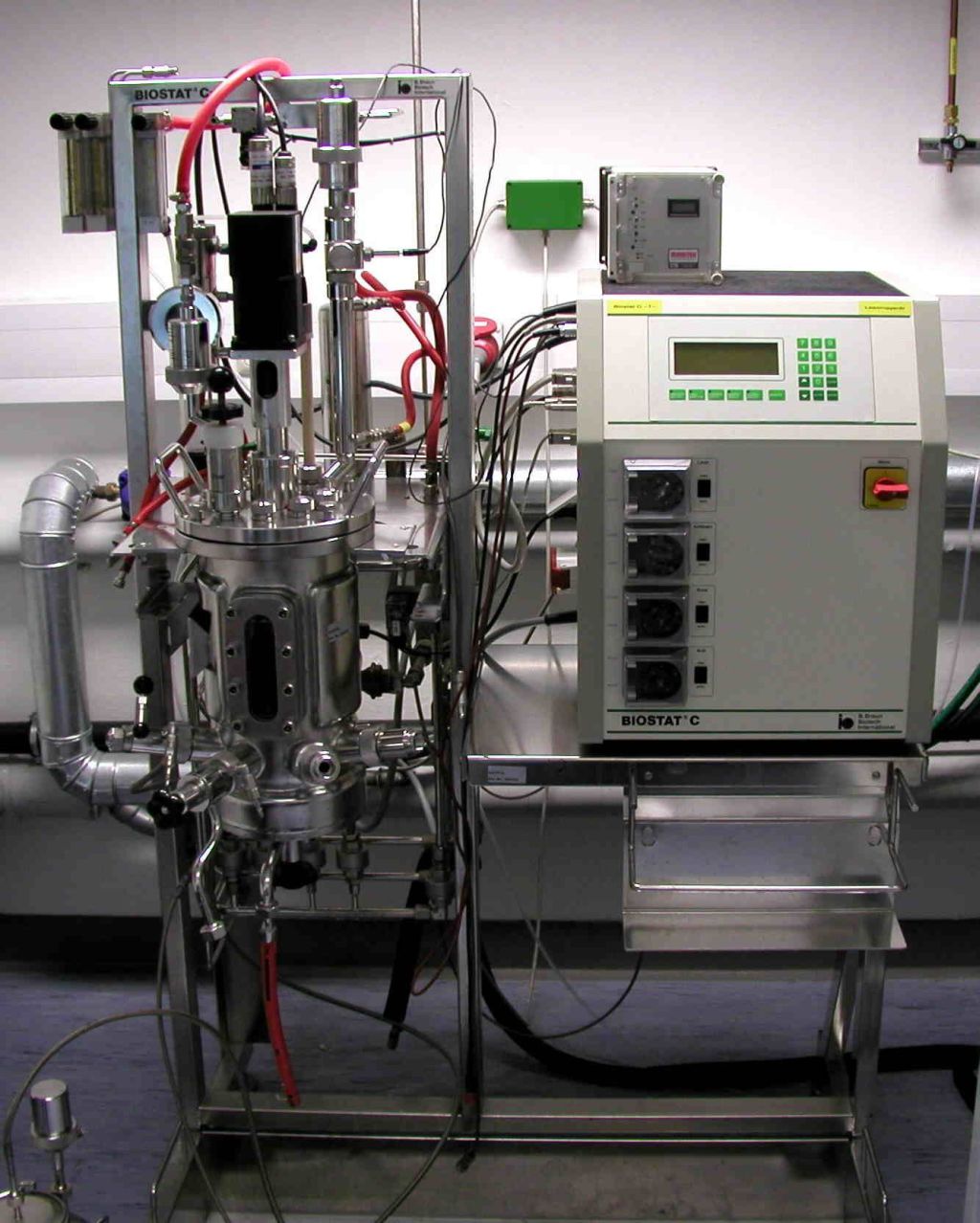

Biostat-C

Each Fermenter fitted with pO2, pH, Temp, and Turbidity Probe.

Steam generator for both, water softener, extensive accessoires.

Network card, Air flow controller, hot (steam) and cold water valves.

Harvest tank for sterile collection of products.

Extensive spare parts.

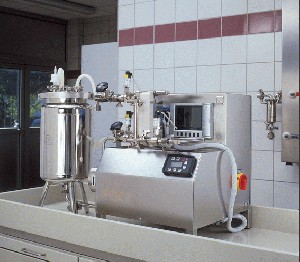

Sartoflow Alpha

2 Liter Holding tank, extensive spare parts and fittings,

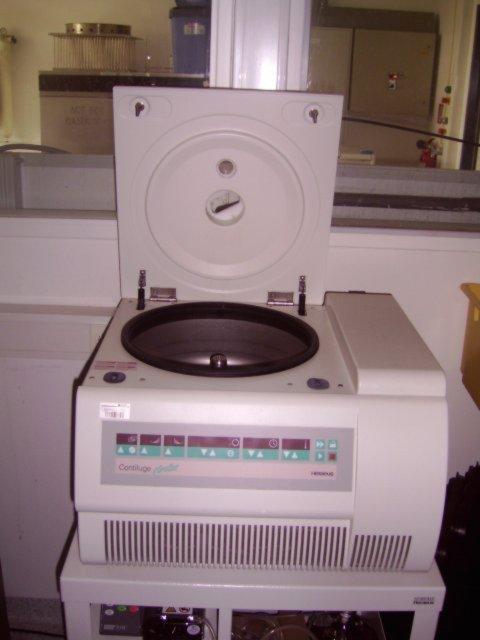

 Kendro Contifuge Stratos

The Contifuge Stratos system is uniquely designed for processing very large sample volumes.-typically, from bioreactors and fermentors-in just a single run. With its high speed, autoclavable continuous flow rotor, the Contifuge Stratos is ideal for harvesting bacterial cultures, yeast, algae, human and animal cell. With a sediment capacity of up to 400 ml and a flow rate of 36L per hour, the Contifuge Stratos can easily accommodate up to 50L bioreactors or fermentors. As a result, compared with batch processing, time savings of up to 80% can be achieved.

Additional Specifications:

Control . . . . . . . . . . . . . . . . . . . . . . . . . . ."Easycontrol II" Microprocessor-control

Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Brushless induction drive

Noise level at max speed . . . . . . . . . . . . .< 60 dBA

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0-9 Hrs 59 min, continuous operation, alternatively 0-99 Hrs

Programs . . . . . . . . . . . . . . . . . . . . . . . . . .9 +1 pre-cooling program

Safety features . . . . . . . . . . . . . . . . . . . . . Lid Lock and Interlock

Accel/braking Curves . . . . . . . . . . . . . . . . .9/9

Temperature range (C) . . . . . . . . . . . . . . .-9 to +40

Advanced functions . . . . . . . . . . . . . . . . . RCF Selection, quick run

Rotor Recognition . . . . . . . . . . . . . . . . . .automatic

Imbalance detection . . . . . . . . . . . . . . . .electronic, depending on speed

Dimensions (H x W x D) . . . . . . . . . . . . . .15.6 x 25.2 x 23.4 In (395 x 640 x 595 mm)

Weight (without rotor) . . . . . . . . . . . . . . . 295 lb (134 kg)

Electrical requirements . . . . . . . . . . . . . .208 V, 50/60 Hz, 20A or 230 V, 50-60 Hz

Features and Benefits

o High performance insert

A specially designed polypropylene insert optimizes sedimentation capability, particularly for small or low density particles. The insert-developed for the separation of suspensions with a low solids content-reduces sediment capacity from 300 ml to 50 ml and results in a small, tightly packed pellet.

o High reliability

The Contifuge Stratos operates reliability, even when complex samples are processed. Even the introduction of air/lather does not affect system operation.

o Large variety of rotors

A simple switch of door plates, both included with the unit, allows the Contifuge Stratos to be used as a conventional superspeed tabletop centrifuge and accommodate the entire fixed-angle and swinging bucket rotor inventory of the Contifuge Stratos.
